Surgical Systems Integration and Support
DepthQ®/ Lightspeed Design, Inc. provides both 3D systems integration for permanent installations as well as 3D support services for surgical clients requiring 3D visualization at lectures, trade-shows and conferences.

3D SYSTEMS INTEGRATION

Since 2005, DepthQ®/ Lightspeed Design has supported prestigious hospitals and universities with advanced DepthQ® HD 3D stereoscopic visualization systems - especially those facilities using Intuitive Surgical’s da Vinci® series of robotic surgical systems.

DepthQ® HD 3D stereoscopic visualization systems all incorporate powerful DepthQ® CaptureTM and DepthQ® PlayerTM software to process and monitor operations in realtime, while providing push-button 3D recording of surgical procedures for later review.

The baseline 3D DepthQ® system is designed to be a stereoscopic visual aid for patient-side assist, and to improve communication in the OR, where it is directly connected to the da Vinci® Surgical System.

But stereoscopic visualization of surgical procedures is also highly valuable beyond the OR. To this end, we can extend the reach of your OR 3D visualization to satellite locations such as remote conference rooms, offices, even theaters.

DepthQ® Mobile(TM) 3D Surgical Support distribution

Stereoscopic 3D display options range from front or rear projection to desktop or wall-mounted LCD monitors to the DepthQ® MobileTM 3D Visualization Cart. Signal distribution can vary from HDMI or HDSDI cable to fiber optic or LAN.

In the video below we are utilizing both fiber optic as well as HDMI to extend the reach of our client's live and recorded 3D surgeries to 8 separate locations spanning 14 floors of the hospital. These include an additional wall-mounted monitor in the 3rd floor OR as well as the chief surgeon's office, plus six mobile 3D monitors - two in a 5th floor conference room and four in a 17th floor conference hall/auditorium:


DepthQ® Systems Integration at 301 Hospital in Beijing

As authorized resellers of top-quality visualization products, we excel at identifying and integrating the best combination of components to solve any 3D visualization challenge.


For more information please use our Contact Form,
or call +1.206.784.1385

Back to top

TRADESHOW, CONFERENCE & LECTURE SUPPORT

DepthQ®/ Lightspeed also provides stereoscopic support services for surgical clients requiring 3D visualization outside the hospital. With extensive experience in digital theater installations, corporate show production, and media technologies, we are well qualified to support your presentation, large or small.

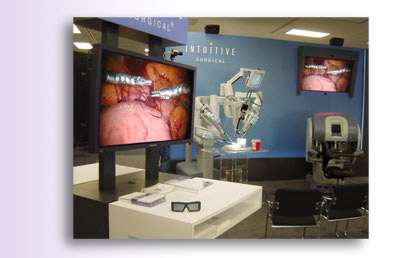

DepthQ® stereo 3D visualization for Intuitive Surgical at the AAGL conference.
For example, DepthQ®/ Lightspeed provides complete stereo 3D visualization for Intuitive Surgical at many international and national conferences and events. Pictured above: the AAGL conference in Washington DC.

The system included a 56" HD 3D monitor, two computers, 20 LC shutter glasses, software and on-site technical support; and provided both realtime aquisition of stereoscopic output from their da Vinci® S HDTM, as well as HD playback of pre-recorded surgeries. In addition, one eye was independently routed to support nine 2D plasma monitors placed around the booth.

Whether it's a conference room, trade show booth, lecture hall or larger, DepthQ®/ Lightspeed has the technology and expertise to assist you in engaging your audience like never before.

For more information please use our Contact Form,
or call +1.206.784.1385

Back to top



View the DepthQ® OR Systems Integration Brochure



Jump to the DepthQ® Mobile Visualization Cart page
DepthQ® Mobile as installed at
Stevens Institute of Technology, NJ



DepthQ® Mobile at Ohio State University Medical Center
DepthQ® Mobile at Ohio State University Medical Center


DepthQ® Mobile at Navy Medical Center, San Diego
DepthQ® Mobile at Navy Medical Center, San Diego


DepthQ® Mobile at University of Minnesota's SIM Portal system
DepthQ® Mobile at University of MN simPORTAL


DepthQ® Mobile at the 301 Hospital in Beijing
DepthQ® Mobile at the 301 Hospital, Beijing


DepthQ® Mobile at Roswell Park Cancer Institute
DepthQ® Mobile at Roswell Park Cancer Institute, Buffalo, NY
DepthQ® Support for conference room 3D visualization
Conference Rooms

DepthQ® Support for 3D visualization at trade shows
Trade Shows

DepthQ® Support for 3D visualization in large venues
Lectures

DepthQ® Support for 3D visualization in large venues
Large Venues
